型號

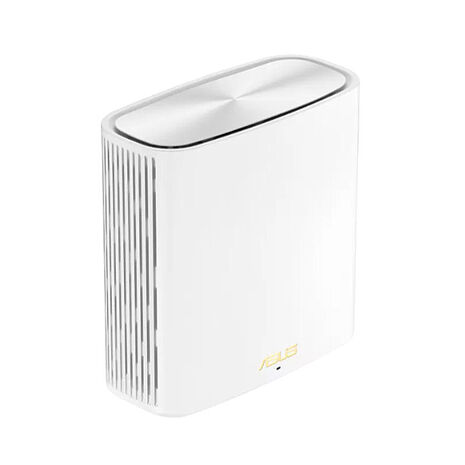

ASUS ZenWiFi XD6 系列(XD6/XD6S)

型號

XD6 (W-2-PK)

網路協定

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

無線速率

AX5400 終極 AX 效能：574+4804 Mbps

AX technology

有

傳輸速率

802.11a :最高 54 Mbps
802.11b : 最高 11 Mbps
802.11g : 最高 54 Mbps
802.11n (1024QAM)：最高 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : 最高 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : 最高 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

天線數量

internal antenna x 6

傳送 / 接收

2.4GHz 2x2
5GHz 4x4

處理器

1.5 GHz tri-core processor

記憶體

XD6
256 MB Flash
512 MB RAM

XD6S
128 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth

無線頻段

2.4 G Hz / 5 GHz

網路連接埠

XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1

Button

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current

Package content

ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide

ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.

Product Weight (g)

XD6: 435 g
XD6S: 425 g

Remark

Content may vary in different regions and packages.

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

有

Alexa

有

AiProtection

AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

家長貼心控管

Parental Control
Parental Control Customized Internet schedule

流量控管功能

Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history

Wireless

IPv6
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 9
Guest Network Connection time limit
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port forwarding
Maximum port forwarding rule : 64
Port triggering
DMZ
DDNS
Let's Encrypt

LAN

DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN

VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

管理功能

Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log

本商品保固由原廠 提供   (如有變更，依原廠公告為主)

ASUS網路產品 保固資訊 (台灣)

產品類別 / 保固	保固期
主機保固	36 個月
